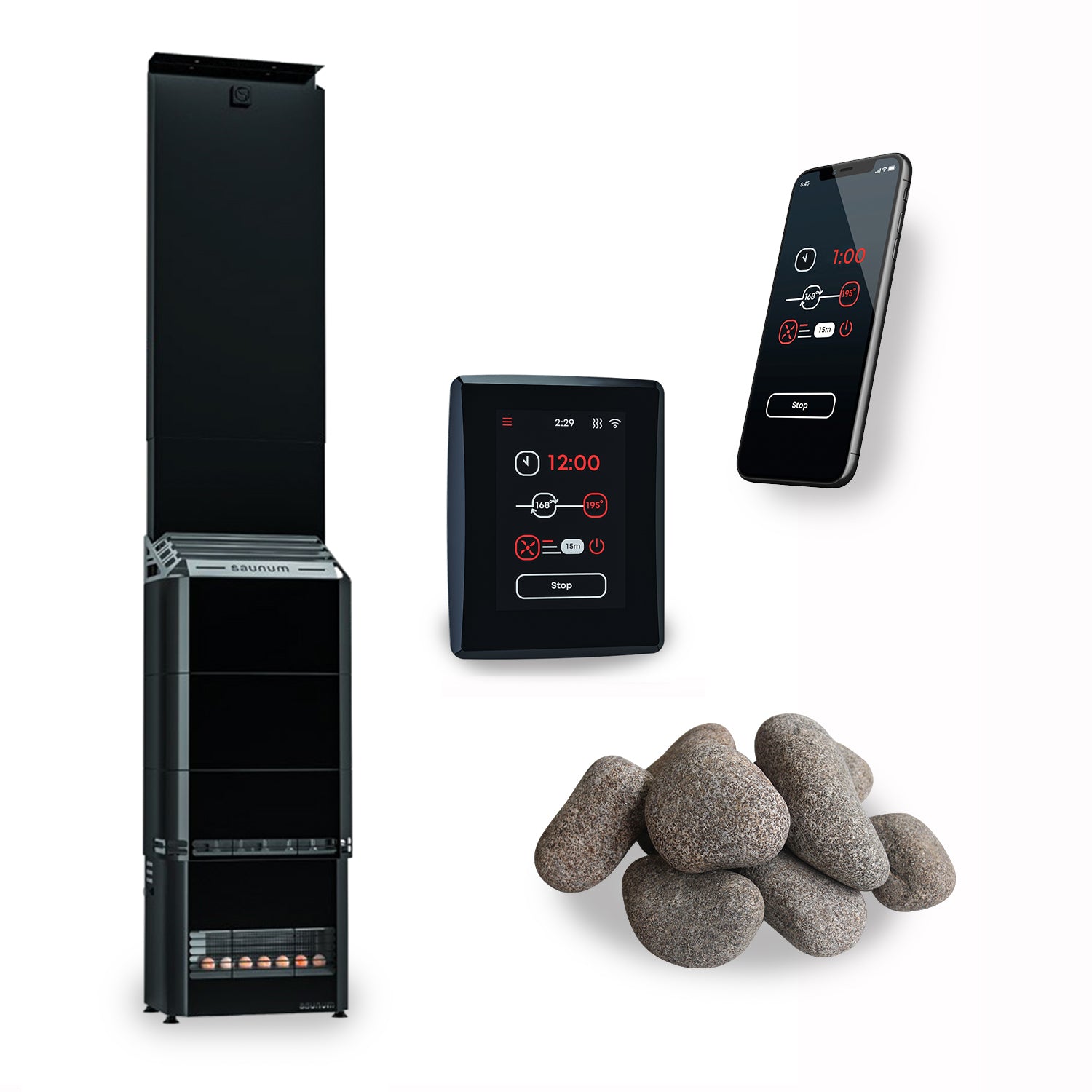

Saunum Air 5 CSB Sauna Heater Package

The Saunum Air 5 CSB Sauna Heater Package is a premium sauna heater package for sauna rooms from 106–212 cu. ft., combining Saunum's patented air mixing technology, a 132-pound stone capacity, Himalayan salt capability, and AirIQ Wi-Fi control — all wrapped in a closed carbon black steel design. It delivers more even head-to-toe heat, flexible sauna session styles, and Scandinavian design suited for a modern sauna space.

Best Uses

• Best for sauna rooms from 106–212 cu. ft. that need reliable 5kW heat output and balanced airflow
• Ideal for homeowners who want a complete heater package with Wi-Fi control, stones, and Himalayan salt included
• Well suited for users who want to choose between classic Nordic steam, humid steam-rich, and mild relaxing sauna settings
• Great for wellness-focused users who value Himalayan salt capability, optional aromatherapy, and a softer steam experience
• A strong fit for smart sauna setups that benefit from app control, preset profiles, safety locks, and sensor notifications

Features

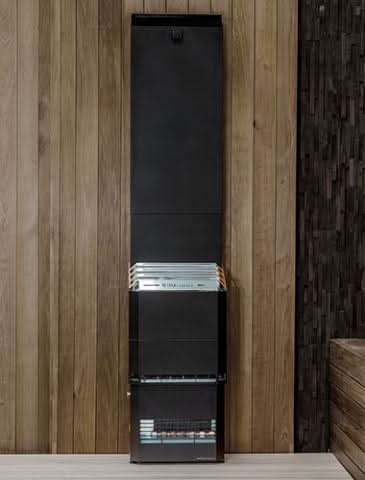

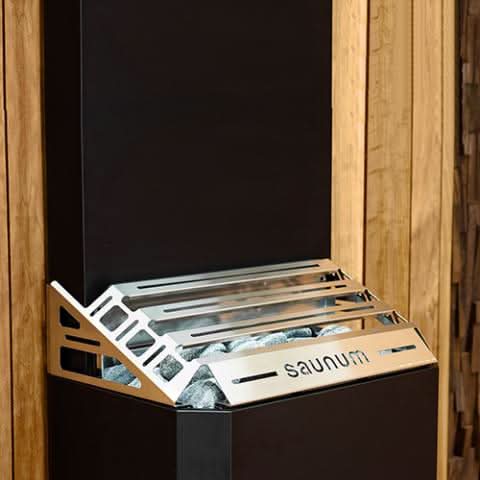

Air 5 CSB Sauna Heater

• Air Mixing Technology — Saunum's patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot or just warm, Saunum delivers heat and oxygen felt head to toe
• European Design — Closed carbon black steel cabinet with a modern Scandinavian aesthetic and premium-quality materials
• Massive Stone Capacity — Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat and produce more luxurious steam. Large 132-pound stone capacity

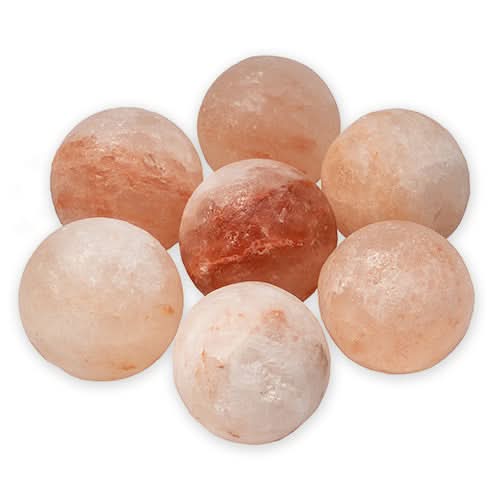

• Himalayan Salt Reservoir — Himalayan Salt Spheres are positioned within the air stream so salt ions are propelled throughout the sauna to deliver health benefits
• Wi-Fi Control — The included AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time you specify on your mobile device
• Dry Your Sauna — Saunum is engineered for water-tossing, and the patented fan system will conveniently help dry your sauna when you're done
• UL Certification — Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards
• Available Aromatherapy — Add another sensory layer with Saunum's optional aromatherapy system, infusing aroma into the steam
• For sauna rooms from 106–212 cu. ft.

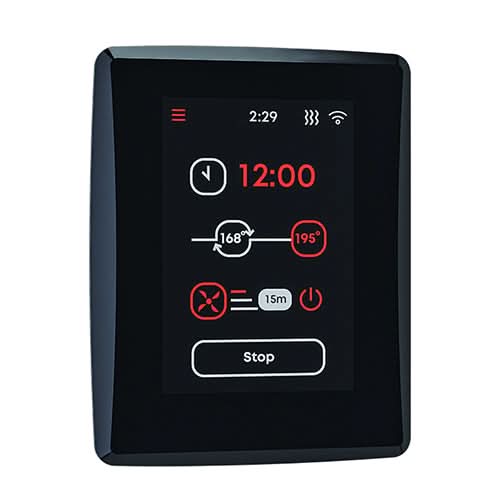

AirIQ Wi-Fi Control

• Temperature range: 104°F–194°F (40°C–90°C)
• Operating timer: up to 1 hour (private) or 6 hours (commercial)
• 3 preset sauna settings with selectable temperature, time, and climate speed
• Classic Nordic Steam — 140°F–194°F, climate device at 25% speed level 1
• Humid Steam-Rich — 113°F–140°F, climate device at 100% speed level 2–3
• Mild, Relaxing — 104°F–131°F, climate device at 25% speed level 1
• Weekly scheduling via Saunum mobile app (iOS & Android)
• Modbus integration for smart home connection
• Push notifications: sauna ready, heating status, door open, overheat protection
• Screen lock & child safety lock
• 16-language menu

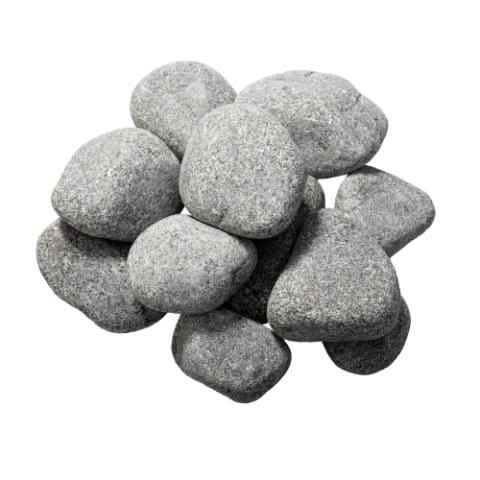

Sauna Stones

• High-quality olivine diabase raw stone
• Rounded, pre-washed, and ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5–10 cm)

What's Included

Air 5 CSB Sauna Heater

• Stainless Steel Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5' (152.4 cm)
• Heat Equalizer Electrical Cable, 5' (152.4 cm)
• Room Temperature Sensor & Cable, 9.5' (289.56 cm)
• Door Sensor & Cable Assembly, 9.83' (299.62 cm)
• AirIQ Display Panel Cable, 16' (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty

AirIQ Wi-Fi Control

• Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
• Wall Mounting Plate and Fasteners
• Power Unit
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 132 lbs of 2" to 4" (5–10 cm) Round Sauna Stones

Specifications

Model	AIR 5 PKG
Heater Power	5kW (4,950W)
Room Size	106–212 cu. ft. (3–6 Cubic Meters)
Voltage	240V, Single Phase
Amperage	20.7A
Wire Size to Power Unit	(2) #10 + N + G
Certification	UL (Underwriters Laboratories)
Body Style	Closed (CSB) — Carbon Black Steel
Stone Capacity	132 lbs (60 kg)
Stone Size	2"–4" (5–10 cm)
Temperature Range	104°F–194°F (40°C–90°C)
Heat Equalizer	3-Speed, Whisper-Quiet
Heater Weight	106 lbs (48 kg)
Shipping Weight (with Stones)	238 lbs (108 kg)
Width	18.3" (465 mm)
Depth	12.4" (315 mm)
Height	75.4"–95" (1915–2413 mm)
Min. Ceiling Height	75.4" (1915 mm)
AirIQ Wi-Fi Control
Type	Digital, Soft-Touch with Haptic Feedback
Wi-Fi	Built-in, App-Based Updates & Operation
Languages	16
Safety Features	Admin, Screen Lock, Door Sensor, Overheat Protection
Programmability	Weekly Scheduling with 3 Sessions
IP Rating	IP20

Documents & Resources

• Installation & Operation Manual
• Quick Assembly Guide
• UL Certifications
• Warranty
• Size Your Sauna
